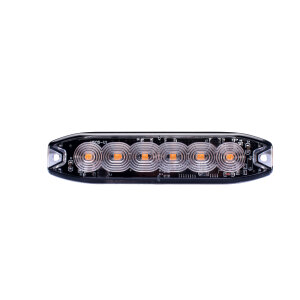

LED-MARTIN SF6 flash module – in a super-flat design;
With a depth of just 7.6 mm and a robust aluminum base plate,
the new SF series impresses with its
fully transparent plastic housing.
Certified according to ECE-R10 and ECE-R65, the warning system meets all current requirements for brightness, radiation, and light color—even during the day.
Synchronization is based on the familiar "MASTER to SLAVE" principle, so that the flash pattern can also be switched during operation.
Synchronization is based on the familiar "MASTER to SLAVE" principle, so that the flash pattern can also be switched during operation.
Product features and technical details:
Product features
Product features and technical details:
Number of LEDs: 6 high-performance LEDs
Number of LEDs: 6 high-performance LEDs
Power supply: 12-24VDC
Power consumption: 9W / max. 18W
Flash pattern: 15 incl. alternating operation
Certification: ECE-R10, ECE-R65
Protection class: IP67
Length: 130 mm
Height: 30 mm
Depth: 7.6 mm
Scope of delivery:
1x SF6 flash module
1x mounting kit consisting of 2 screws and 2 lock nuts
1x self-adhesive paint protection
