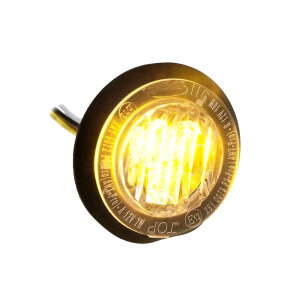

The first front flashlight from LED-MARTIN, which is not visible on your vehicle except for the lens, and the full power of the latest LED technology.
HIDEAWAY solutions (concealed installation) are increasingly finding their way onto the European market, and with the Xpro3 beacon, we offer a patented and powerful option.
HIDEAWAY solutions (concealed installation) are increasingly finding their way onto the European market, and with the Xpro3 beacon, we offer a patented and powerful option.
A screw-on mounting was deliberately avoided. The rubberized mounting ring included in the scope of delivery provides a seal against water and dust and also ensures a firm fit.
A screw-on mounting was deliberately not used. The rubberized mounting ring included in the scope of delivery provides water and dust sealing, ensures a secure fit, absorbs shocks, and thus protects the LED unit. For concealed mounting, the front flasher is inserted into a hole with a minimum diameter of 36 mm.
Product features and technical details:
- LED technology with a service life of 10,000 hours
- 12 V DC
- 1000 lm light output
- 1000 lm light output
Product features and technical details:
Number of LEDs: 3x 3W LED
Number of LEDs: 3x 3W LED
Certification: ECE-R65, ECE-R10
Protection class: IP67
Light pattern: 13 (synchronized and alternating operation between
at least 2 or more modules possible)
Power: 9W
Operating voltage: 10-33VDC
Installation instructions:
-Minimum mounting diameter: min. 36mm / max. 36.6
-Alignment: TOP side must be legible (see image in gallery)
Step 1: Insert the mounting ring. Step 2: Clamp the LED unit into the mounting ring.
Scope of delivery:
Scope of delivery:
1x Xpro3 beacon
1x Xpro3 mounting ring
