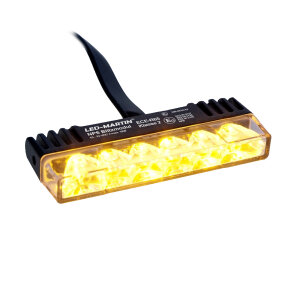

With the NP6 low-profile front flash, LED-MARTIN®
is offering for the first time a flash module that can be concealed between
radiator grille ribs with limited
installation space. In addition to its particularly low height of
13 mm, the flash module features the latest
ECE-R65 Class 2. Due to its excellent warning performance, the certification provides for two light intensities so that the flash module can be dimmed at night.
The two mounting options supplied offer easy installation for various applications.
The two mounting options included offer easy installation for
various applications.
Product features and technical details:
Number of LEDs: 6 x 3W
Number of LEDs: 6 x 3W
Nominal power: 10W
Light pattern: 19
Operating voltage: 12V/24V
Power consumption: 0.8A at 12V - 0.4A at 24V
Protection class: IP67 Operating temperature: -30°C - 50°C
Type approval: ECE-R65 Class 2, ECE-R10
Connection instructions:
Short form:
The NP6 front flashers are powered via the red and black cables
with
voltage. Connecting the yellow cables
synchronizes the modules; an alternating flash pattern is also
possible. Using the green cable and +VDC assignment,
the flash module can be dimmed at
night.
Scope of delivery:
1x NP6 flash module in selected light color
1x mounting kit for adhesive mounting using 3M VHB tape
1x mounting kit for screwing with angle bracket
1x connection instructions (German)
Product safety information
Manufacturer information:
LED-MARTIN GmbH
Bahnhofstraße 13
Rheinland-Pfalz
Arzfeld, Deutschland, 54687
service@led-martin.de
https://www.led-martin.de/
Connection instructions NP6 front flash module
Technical details
- Power supply: 10-33VDC
- Power consumption: max. 10W
- Temperature range: -20…+60°C
- Number of flash patterns: 19
- Certification: ECE-R10, ECE-R65 Class 2
Installation
For mounting, the flash module is screwed or glued using the brackets included in the scope of delivery, depending on the application.
When gluing, make sure the surface is free of grease to ensure a durable and very strong bond.
Flash pattern
- Random selection
- Single flash - split
- Double flash - split
- Quad flash - split
- Five flashes - split
- Ultra flash - split
- Single/quad flash - split
- Single high/low - split
- ECE-R65, single flash – all LEDs
- ECE-R65, double flash – all LEDs
- Double flash – all LEDs
- Quad flash – all LEDs
- Five flashes – all LEDs
- Ultra flash – all LEDs
- Single/quad flash – all LEDs
- Single high/low – all LEDs
Cable colors and functions
- Black: Ground connection
- Red: Power supply to the flash module
- Yellow: Buttons on +VDC enable permanent selection of flash pattern
- Green: Night reduction 50% power
- White: Communication cable for synchronous or alternating flash pattern
Selection of flash pattern
Press the yellow cable on the +pole to select the flash pattern on the flash modules.
Synchronization
After selecting the same flash pattern on all NP6 modules, the modules can be synchronized by connecting the white cables.
The flash pattern can also be changed synchronously by connecting the yellow cables together.
Alternating flash pattern
To switch individual flashers or two different groups of modules alternately (alternating), connect the white cables of group 1 to ground and the white cables of group 2 to +VDC.
Connecting the yellow cables together also allows the flash patterns to be switched simultaneously.
