Ultra-compact reversing and work light with a height of only 16 mm, ECE R148 approved as a reversing light, and with an extremely wide 140° light pattern for maximum visibility when maneuvering. Ideal for discreet installation on cars, vans, off-road vehicles, and commercial vehicles.
Key advantages
✓ Very low height (16 mm) – fits almost flush into the body/rear
✓ ECE R148 approved as a reversing light – legally compliant use
✓ 140° beam angle – wide, homogeneous illumination behind the vehicle
✓ Modern, discreet design – functional and stylish at the same time
✓ Modern, discreet design – functional and stylish at the same time
✓ Easy installation – available in 1500 mm fixed connection or with
DEUTSCH-DT connection
Light output & optics
Luminous flux: 1700lm
Color temperature: 5000 K – close to daylight for clear
contrasts
Light pattern: 140° wide work/reverse spot
for close-range and ambient lighting
Technical data
Power: 24W max (2A at 12V, 1A at 24V)
Operating voltage: 9–36 V
Protection class: IP68 (dustproof and waterproof)
Type approval: ECE R10, ECE-R148 (reversing light)
Electronic thermal management for long service life
Dimensions & connection
Width: 89 mm
Height: 16 mm (26 mm with mounting bracket)
Depth: 47 mm

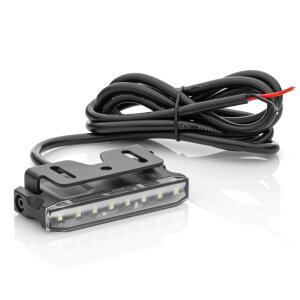

Cable: 1500 mm fixed connection cable
Typical applications
Reversing light (legal according to ECE R148),
Additional work light at the rear, ambient lighting for
Trailer coupling, tail lift, pickup tailgate, ATV/UTV,
Vans and trucks
