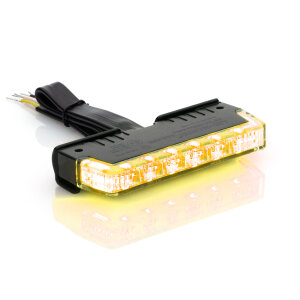

With the low-profile NP180 front flash, LED-MARTIN® is offering
for the first time a flash module that can be concealed between
radiator grille ribs with limited installation space. In addition to its particularly low height of
11 mm, the flash module impresses with its particularly intense
180° beam for maximum warning effect even during the day.
For nighttime use, the luminosity can be reduced
so as not to dazzle other road users.
Bracket sets are included for flexible mounting options.
Product features
Product features and technical details:
Number of LEDs: 8 at 1.87W
Number of LEDs: 8 at 1.87W
Number of LEDs: 8 at 1.87W
Nominal power: 15W
Lighting pattern: 20 incl. continuous light
Operating voltage: 10-33V
Power consumption: 1.25A at 12V - 0.625A at 24V
Protection class: IP67 Operating temperature: -30°C - 50°C
Type approval: ECE-R65, ECE-R10
Dimensions: LxWxH - 90 mm x 33 mm x 11 mm
Connection instructions:
Short version:
The NP180 front flashers are powered via the red and black cables.
Connecting the yellow cables synchronizes the modules; an alternating flash pattern is also possible.
Using the green cable and +VDC assignment, the flash module can be dimmed at night.
Scope of delivery:
Scope of delivery:
1x NP180 flash module in selected light color
1x mounting kit for adhesive mounting using 3M VHB tape
1x mounting kit for screwing with angle bracket or flat screw-on plates
1x connection instructions (German)
1x connection instructions (German)
Product safety information
Manufacturer information:
LED-MARTIN GmbH
Bahnhofstraße 13
Rheinland-Pfalz
Arzfeld, Deutschland, 54687
