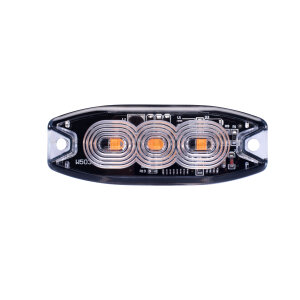

LED-MARTIN SF3 flash module – in a super-flat design;
With a depth of just 9.4 mm and a robust aluminum base plate,
the new SF series impresses with its
fully transparent plastic housing.
Certified according to ECE-R10 and ECE-R65, the warning system meets all current requirements in terms of brightness, radiation, and light color—even during the day.
Synchronization is based on the familiar "MASTER to SLAVE" principle, so that the flash pattern can also be switched during operation.
Synchronization is based on the familiar "MASTER to SLAVE" principle, so that the flash pattern can also be switched during operation.
Product features and technical details:
Product features
Product features and technical details:
Number of LEDs: 3 high-performance LEDs
Number of LEDs: 3 high-performance LEDs
Power supply: 12-24VDC
Power consumption: 9W / max. 18W
Flash pattern: 15 incl. continuous light
Certification: ECE-R10, ECE-R65
Protection class: IP67
Length: 82 mm
Height: 30 mm
Depth: 9.4 mm
Scope of delivery:
1x SF3 flash module
1x mounting kit consisting of 2 screws and 2 lock nuts
1x self-adhesive paint protection film
