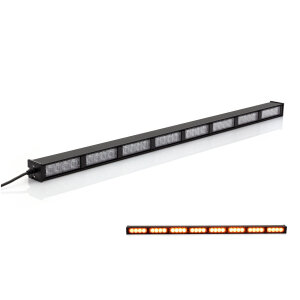

The latest rear warning device in the Helios Tec series, further developed and certified according to R65. Warning flash patterns and traffic-directing flash patterns are easily adjustable and can be switched individually using switches installed in the vehicle. This system meets all requirements for professional, daily use.
If you have any questions about the connection, please contact us.
Please contact us if you have any questions about the connection.
Product features and technical details:
Power supply: 10-33VDC
Power supply: 10-33VDC
Power consumption: 50W (6 LED modules), 71W (8 LED modules)
Length: 840 mm (6 LED modules), 1120 mm (8 LED modules) depending on the selected configuration
Height: 45 mm
Height: 45 mm
Depth: 55 mm
Material: solid aluminum housing for heat dissipation
Type approval
Type approval according to: ECE-R65 and ECE -R10 certified
Flash patterns: 30 different flash pattern programs
Power supply:
Red - + pole - power supply
Black - vehicle ground
Control of operating modes via + VDC:
Brown - warning effect 1
Orange - left-hand traffic
Blue - right-turning traffic guidance
Green - warning effect 2
Yellow + VDC - flash pattern selection
White - no assignment
Scope of delivery:
1x LED MARTIN Helios TEC Go in selected length
1x HELIOS TEC Go mounting kit
