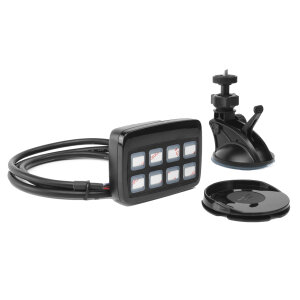

Powerful control unit for switching additional devices in commercial and emergency vehicles. The backlit, rubberized buttons offer optimized operation even at night.
Optional programming directly via the panel (see German instructions):
- Buttons 1-7 can be programmed as on/off or push buttons
- Control panel activates when ignition is switched on
- ON/OFF button programmable as a "hotkey" for several other buttons
- 35 different symbols for custom key assignment
- Selectable for emergency vehicles: Front flashers, rotating beacon, and optional special acoustic signal can be activated with a single button press. Visual beacons remain activated after the DIN sequential tone is deactivated.
Technical details:
Certification: ECE-R10
Power supply: 10-24VDC
Operating temperature: -30°C - 65°C
Cable length: 120cm
Power consumption: < 2W
Outputs: 3x 0.2A / 5x 0.1A for controlling load relays or direct control of rear warning system / special signal amplifier
