Powerful control unit for switching additional devices in commercial and emergency vehicles. The backlit, rubberized buttons offer optimal operation even at night.
Optional programming directly via the panel (see German instructions):
- Buttons 1-7 can be programmed as on/off or push buttons
- Control panel activates when ignition is switched on
- ON/OFF button programmable as a "hotkey" for several other buttons
- 35 different symbols for custom key assignment
- Selectable for emergency vehicles: Front flashers, rotating beacon, and optional special acoustic signal can be activated with a single button press. Visual beacons remain activated after the DIN sequential tone is deactivated.
Technical details:
- Certification: ECE-R10
- Power supply: 10-24VDC
- Operating temperature: -30°C - 65°C
- Cable length: 120cm
- Power consumption: < 2W
- Relay outputs: 5x 0.2A / 3x 10A

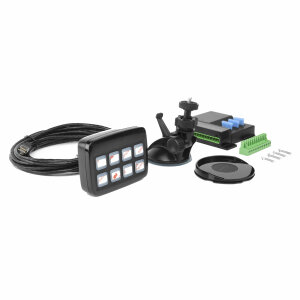

Scope of delivery:
1x B8 control panel with 8 buttons
1x relay station incl. screw contact plug
1x button sticker sheet with 35 design options
1x 4m Ethernet cable
1x base with 3M adhesive foot for stationary mounting
1x suction cup device for the windshield
1x screw set
1x operating instructions
