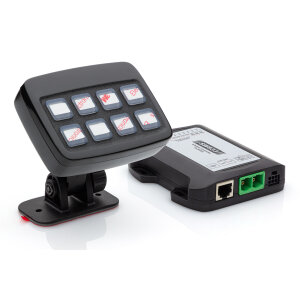

The B8-V2 is a powerful control unit for switching additional devices in commercial and emergency vehicles. As with its predecessor, the backlit, rubberized buttons ensure optimal operation even at night.
A special feature is the high total load capacity of max. 45A, which means that all outputs can switch significantly higher loads than the previous model B8. In addition, there are 3 inputs for extended functions such as parking siren stop, additional external buttons or function controls.
A detailed and comprehensive description of the functions can be found in the enclosed English manual or as a PDF file under Download.
Technical details:
- Certification: ECE-R10
- Power supply: 10-30VDC
- Operating temperature: -40°C - 60°C
- Cable length: 6-pin cable harness - 30cm / RJ45 cable - 400cm
- Power consumption: max. 45A / standby mode 35mA
- Fuse protection: 50A
- Operating temperature: -40°C ~ 60°C
Scope of delivery:
1x control unit
1x control unit
1x RJ45 cable 4m
1x terminal strip
1x screw set
1x 6-pin cable harness
1x bracket for permanent mounting
1x screw set for bracket
1x adhesive sheet with symbols
1x instructions
Product safety information
Manufacturer information:
LED-MARTIN GmbH
Bahnhofstraße 13
Rheinland-Pfalz
Arzfeld, Deutschland, 54687
