The DBT12 control unit, including relay station, enables the
linking of two differently positioned DBT12 control units,
which can be operated simultaneously and synchronize the
function being performed.
This reduces the need for additional, tedious entry into the cockpit for
operation, saving energy and time during use.
12 individually customizable & illuminated buttons facilitate use.
Display LEDs at the top of the control unit
can be freely assigned to the buttons and adjusted.
The labeling of the individual buttons can be redesigned as often as desired,
as they are not glued in but inserted.
The different sizes of the buttons and the distances between them make them easy to remember and ensure accurate operation even while driving.
The included relay station allows for higher loads and also serves as a hub for linking another control unit.
The included relay station allows for higher loads and also serves as a hub for linking another control unit.
The included relay station allows for higher loads and also serves as a hub for linking another control unit.
The relay station supplied enables higher loads to be accommodated and also serves as a hub for connecting an additional control unit.
Our tip for vehicle construction:
The control unit can be mounted on the vehicle's roof or under the dashboard.
Our tip for vehicle construction:
The set functions can be copied from one control unit to another.
This saves time, especially when setting up several vehicles with the same configuration.
Product features and technical details:
Product features and technical details:
Power supply: 12/24V
Power supply: 12/24V
Type approval: ECE-R10
Output 1-3: max. 10A each
Outputs 4-6: max. 10A total
Outputs 7-11: 0.2A each
One additional ground output

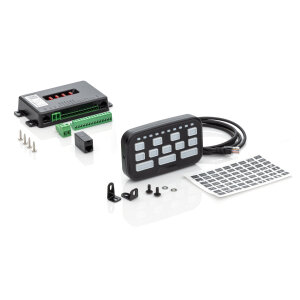

Scope of delivery:
1x DBT12 control unit
1x relay station
1x Ethernet cable
1x Connection and terminal set
1x mounting kit
2x Insert set with symbols
