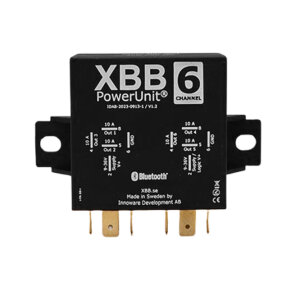

The XBB PowerUnit 6® is the perfect solution for vehicle manufacturers looking for simple and clean installation without interfering with the vehicle's electronics.
With the ability to control up to 6 functions in a compact unit, it opens up a wide range of applications for lighting systems and accessories.
Key features
-
6 outputs with
10 amps each, suitable for demanding applications.
-
ISO 8092-1-compliant relay connections for reliable connections.
-
Simple installation concept thanks to integrated mounting lugs.
-
Flexible integration with XBB Dongle® or PP-CAN-FD® for comprehensive CAN bus compatibility.
-
Space-saving design: flat plug connections (6.3 mm) for up to 10 connections.
Perfect for lighting systems
The XBB PowerUnit 6® is ideal for vehicles with multiple light sources such as auxiliary headlights or position lights.
It allows each lamp or light function to be controlled individually.
In combination with an XBB Dongle®, you can operate up to
4 devices simultaneously, resulting in
24 controllable outputs.
Intelligent control via CAN bus
The connection to the vehicle control system is established via the XBB Dongle® or PP-CAN-FD®, which read signals directly from the vehicle's CAN bus data.
This allows functions such as high beam, reverse lights, or ignition to be recognized and processed.
Control is conveniently via Bluetooth (BLE 5) and is individually configured using the
XBB Configurator® app.
Extended control options
With the integrated
XBB Dashboard® function in the app, you can create a virtual button bar.
This enables:
- Manual control of individual outputs.
- Display of vehicle data such as battery voltage.
- Advanced functions such as flash modes and PWM output control.
The app also offers customization options, such as changing symbols and colors.
Please note that the XBB Dashboard® feature is currently under development and will soon be even more user-friendly.
Note
Installation always begins with setting up the XBB Dongle® and selecting a compatible configuration recipe in the app.
A list of supported vehicle models is available.
Item no.: IDAB-2024-0610-1 (Version 1.2)
XBB PowerUnit 6® – the smart solution for smart vehicle control!
