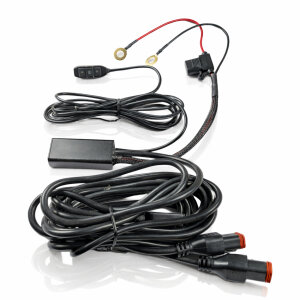

This mini control unit was specially developed for the professional and, at the same time, vehicle-friendly control of auxiliary remote headlights with position light function. The biggest advantage is its immediate readiness for use: the entire switching unit operates independently and does not require any intervention in the original vehicle electrical system. This means that the on-board electronics remain untouched – a decisive advantage in modern vehicles with sensitive CAN bus systems.
The auxiliary headlights are powered directly from the vehicle battery and switched via an integrated relay with its own fuse. This ensures a stable power supply, full light output, and maximum operational reliability. At the same time, the original high-beam signal is not required, as control is handled entirely by the control unit. Ideal for users who want to use auxiliary high-beam headlights independently of the standard lights.
Another clear USP is the particularly long connection cables. With a cable length of around 290 cm from the switch box to the switch unit, the control unit can be easily routed into the vehicle interior – even in larger vehicles, off-road vehicles, or vans. The approx. 300 cm long cables to the headlights also offer maximum freedom when positioning the lights on the front, bracket, or roof.
The control unit allows convenient control of two auxiliary headlights with three functions: white position light, yellow position light, and high beam. All components are pre-assembled and coordinated, which significantly reduces installation time and minimizes sources of error. A true plug-and-play solution for professional retrofits.
Technical details
- Control of up to 2 additional high-beam headlights
- Functions: high beam, white position light, amber position light
- Independent control without interfering with the vehicle's electrical system
- Direct connection to the vehicle battery
- Integrated relay with its own fuse
- Fuse: 15 A
- Maximum total power: 130 W
- Cable length from junction box to switch unit: approx. 290 cm
- Cable length from switch box to headlights: approx. 300 cm
- Plug-and-play, pre-assembled
- Suitable for 12 V vehicle systems
Scope of delivery:
Mini control unit with switching unit, pre-assembled relay, fuse holder incl. 15 A fuse, complete set of connection cables
