LED MARTIN presents X-RANGE and X-RANGE Duo
Long-range headlights with ECE-R112 approval, powerful
LEDs and X reflectors.
Conventional lightbars usually emit light in a wide angle, which
Type approval according to ECE-R112 and are therefore not approved as
Long-range headlights.
The X-reflectors of the X-Range series compensate for this and the
Headlight offers an optimal light pattern that is type-approved in accordance with ECE-R112
.
Forestry vehicles, construction site vehicles, pickups, and
Agricultural vehicle fleets benefit from the low installation height and
powerful LEDs with X reflectors.
The X-RANGE series includes a wide selection of different
Designs – available in different
Lengths and performance classes::
S40F X-RANGE long-range headlight
Long-range headlight M40F X-RANGE
L40F X-RANGE long-range headlight
S70F X-RANGE Duo long-range headlight
Long-range headlight M70F X-RANGE Duo
L70F X-RANGE Duo long-range headlight
Technical
Details and product features:
Power supply: 10/30V
Type approval: ECE-R112, ECE-R10
Protection class: IP67 / IP69K
Reflectors: Combination of flood and spot reflectors
Cable length: 46cm / German plug socket

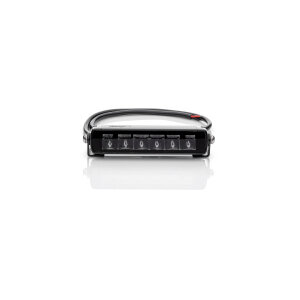

S40F long-range headlight
X-RANGE - ECE-R112
Length: 177 mm / Height: 40 mm / Depth: 54 mm
Power consumption: 12V=1.13A / 24V=0.59A
Power: max. 15W
Reference number: 25
Candela: 12500
Lumen: 2520lm
Scope of delivery:
1x X-RANGE long-range spotlight in selected version
2x brackets incl. screw set
1x 33.5 cm cable extension with German plug
