LED MARTIN presents X-RANGE and X-RANGE Duo
Long-range spotlights with ECE-R112 approval, powerful LEDs, and X-Reflectors
LEDs and X reflectors.
Conventional lightbars usually emit light in a wide angle, which
Type approval in accordance with ECE-R112 and are therefore not approved as
Long-range headlights.
The X-reflectors of the X-Range series compensate for this and the
Headlight offers an optimal light pattern that is type-approved in accordance with ECE-R112
.
Forestry vehicles, construction site vehicles, pickups, and
Agricultural vehicle fleets benefit from the low installation height and
powerful LEDs with X reflectors.
The X-RANGE series includes a wide selection of different
Versions – in different lengths and performance classes to suit your requirements
Lengths and performance classes:
S40F X-RANGE long-range headlight
Long-range headlight M40F X-RANGE
L40F X-RANGE long-range headlight
S70F X-RANGE Duo long-range headlight
Long-range headlight M70F X-RANGE Duo
L70F X-RANGE Duo long-range headlight
technical details and product features:
Power supply: 10/30V
Type approval: ECE-R112, ECE-R10
Protection class: IP67 / IP69K
Reflectors: Combination of flood and spot reflectors
Cable length: 46cm / German plug socket

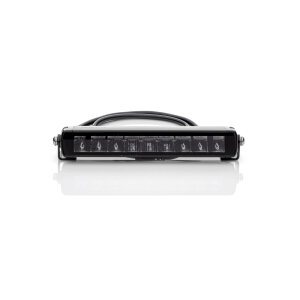

M40F long-range headlight
X-RANGE - ECE-R112
Length: 246 mm / Height: 40 mm / Depth: 67 mm
Power consumption: 12V=1.63A / 24V=0.852A
Power: max. 21W
Reference number: 25
Candela: 12500cd
Lumen: 3780lm
Scope of delivery:
1x X-RANGE long-range spotlight in selected version
2x brackets incl. screw set
1x 33.5 cm cable extension with German plug
