Technical details and product features:
Power supply: 12V / 24V
Dimensions (LxWxH): 214x94x34mm
Fully sealed for high resistance to moisture and dust
All type approvals (E-mark) available and engraved on the product
All type tests (E-mark) available and engraved on the product
(ECE-R10, R23, R3, R4, R6, R7, and R38)
Functions on the left:
- Rear fog light
- Rear light (red)
- Brake light (red)
- Dynamic direction indicator (yellow)
- Side license plate light (right)
Functions on the right:
- Reversing light (white)
- Tail light (red)
- Brake light (red)
- Dynamic direction indicator (yellow)
- Side license plate light (left)
Power consumption:
Rear light & license plate light:
12V = 1.5W = 0.12A
24V = 3W = 0.12A
Brake light:
12V = 1.5W = 0.12A
24V = 3W = 0.12A
Direction indicator:
12V = 4.5W = 0.35A
24V = 9W = 0.35A
Reversing light:
12V = 2.8W = 0.22A
24V = 5.5W = 0.22A
Rear fog light:
12V = 2W = 0.16A
24V = 4W = 0.16A
Scope of delivery:

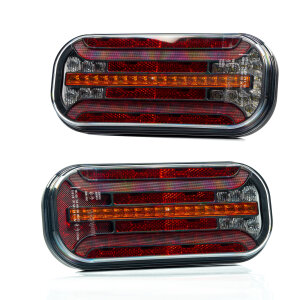

1x LED rear light with dynamic turn signals - left
1x LED rear light with dynamic direction indicators - right
