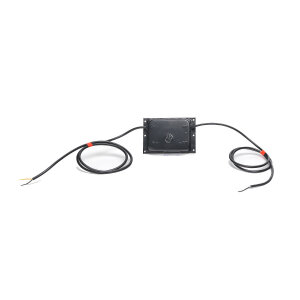

Make turning safer with the SAFEBOX turn signal module for
LED side marker lights only - 12/24V
Brief explanation of the functions:
1. keeps one side with LED side marker lights lit continuously
2. makes one side with LED side marker lights flash synchronously with the turn signal
Especially in cities with high-traffic situations, safe turning for buses, garbage disposal or
construction vehicles has become a serious issue for the protection of other road users.
With the addition of the ECE-R48 regulation 6 or the StVZO
§54 of November 17, 2019, new vehicles must be equipped with
With the addition of ECE Regulation 6 or StVZO
§54 of November 17, 2019, new vehicles in
classes M and N must be equipped with additional flashing modules
that synchronize the signal of the turn signal to the
Side marker lights. Cyclists and pedestrians should be given more advance warning when the vehicle changes direction, and the number of fatal accidents caused by this should be significantly reduced.
Retrofit your vehicles cost-effectively with LED-MARTIN.
Retrofit your vehicle cost-effectively with LED-MARTIN.
IMPORTANT NOTE: This flashing module is only to be used in conjunction with
LED side marker lights
Product features and technical details:
Operating voltage: 12/24V
Operating voltage: 12/24V
Channels: 1 (sufficient for one side of the vehicle)
Material: corrosion-protected steel housing,
painted, cable routing sealed
Type approval: ECE-R10
Cable length IN and OUT: 100 cm
Max. load OUT: 1.8A
Connection instructions:
1.1 connection to direction indicator / turn signal (IN)
black cable: +VDC 12/24V vehicle lighting
white cable: (-) Ground
yellow cable: +VDC 12/24V flasher
1.2 Connection to side marker lights (OUT)
black cable: +VDC side marker light
white cable: (-) Ground Side marker light
Scope of delivery:
1x SAFEBOX flashing module for LED side marker lights
