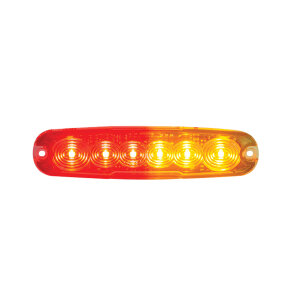

With the SLIM combination rear light, LED-MARTIN® offers one of the smallest rear lights with integrated brake and tail lights, including direction indicators. Type-approved in accordance with the necessary ECE regulations, the SLIM rear light provides a discreet yet compliant means of fulfilling the necessary lighting requirements at the rear of the vehicle.
Technical data:
Power supply: 12V / 24V
- only 8 mm flat
- Type-approved in accordance with ECE-R6
- waterproof, IP67
- Dimensions: 131 mm x 30 mm x 8 mm
Functions
1. Brake light
2. Rear/tail light
3. Direction indicator (turn signal)
Pin assignment:
White cable: Ground
Red cable: Brake light
Brown cable: Tail light
Yellow cable: Direction indicator
