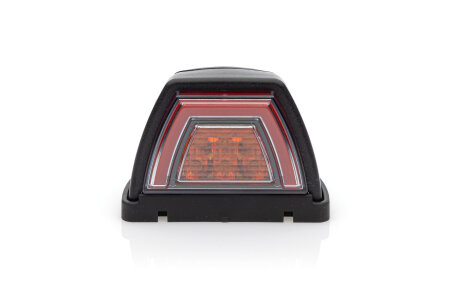

The HeadON roof marking and multifunctional light is ideal
for marking vehicle roofs on trucks, trailers, motorhomes, and other commercial vehicles. With its
robust LED module, it ensures a long service life and
for better visibility in road traffic.
During installation, ensure correct connection and stable mounting to achieve optimal luminosity and maximum safety.
Product features
& technical details:
Product features
& technical details:
- Power consumption: approx. 1W
- Light output: approx. 50–70 lumens (depending on model)
- Power supply: 12–24 V DC
- Type approval: ECE R7, ECE R10, ECE-R6 (only for version with direction indicator)
- Protection class: IP66/68
- Dimensions: L: approx. 99 mm, W: approx. 32 mm, H: approx. 24 mm
- Operating temperature: -40 °C to +55 °C
- Material: Robust polycarbonate (UV-resistant)
- Connection cable length: approx. 0.5 m
- Weight: approx. 20 g
Scope of delivery:
1x HeadON roof marking and multifunction light
1x Pre-assembled connection cable
1x Quick start guide for installation and operation
