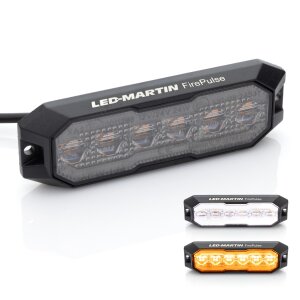

This combined LED warning light "FirePulse" with a tinted lens offers you maximum safety
and flexibility in road traffic. It combines
either a warning light with a reversing light or red
white position lights in a single module, making it ideal for a wide range of applications.
When using the light, always observe the legal regulations and approvals in accordance with ECE-R65 and ECE-R148 to ensure proper and safe use
.
Technical details
Power consumption
- Warning light: max. 24 W (for all models)
- Reversing light: 7 W (for item LM5216)
- Red position light: 5 W (for item LM5217)
- White position light: 3 W (for item LM5214)
- Yellow side marker light: 3 W (for item LM5215)
- Connection cable length: 20 cm
Connection diagram
-Black: - Ground
-Red: Warning effect on [+]
-Yellow: Synchronization
-Blue: Position light [+] or reverse light [+] (only with LM5216)
-White: Alternating function [+]
-Gray: Night reduction [+]
Type approval
- ECE-R65 (for all models)
- ECE-R148 (for all models)
Brightness
- over 500 cd with warning light active
Scope of delivery
- 1 × "FirePulse" combination warning light with
tinted lens
- 1x paint protection pad
