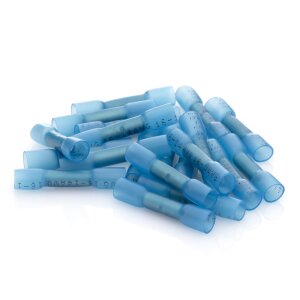

These heat-shrinkable crimp connectors provide you with
a secure and durable connection solution for
electrical cables in vehicles. Thanks to the integrated adhesive
and high-quality polyolefin heat-shrink tubing, the connection
is protected against moisture, corrosion, and mechanical influences
. When processing, make sure to use the correct wire cross-sections and heat the heat-shrink tubing evenly with a hot-air blower until the material has shrunk completely and the adhesive has melted. This ensures a permanently tight and strain-relieved connection
and the adhesive has been expelled. This will ensure a permanently tight and strain-free connection.
Technical details
• Shrink ratio: 3:1
• Operating temperature range: -55°C to +125°C
• Minimum shrinkage temperature: 80°C
• Complete reset temperature:
130°C
• Material: Polyolefin with inner adhesive
• Tests/standards: CE (including ROHS)
• Maximum dielectric strength: 2.5 kV (1 minute without failure)
•
• High tensile strength: min. 16 MPa (unaged), min. 11.5 MPa
(aged)
Scope of delivery
20 heat-shrinkable crimp connectors in
selected design
