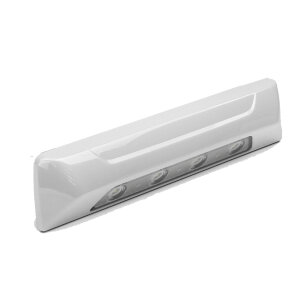

A compact, powerful LED wide-beam spotlight for indoor and outdoor use on emergency, utility, and special-purpose vehicles. Ideal as a perimeter or work light for safely illuminating footwells, vehicle sides, or rear work areas. When installing, ensure correct polarity (red = +VDC, black = ground), a fused supply cable (2 A), and a flat, deburred mounting surface. The light is attached with a foam pad and two self-tapping screws. The cover is interchangeable and available in several colors.
Technical details
Electrical data
Power consumption: up to 14.4 W
Luminous flux: 1,400 lm (raw) / 890 lm (effective)
Power supply: 12–24 V DC (multivoltage)
Max. current consumption: 1.2 A @ 12 V / 0.6 A @ 24 V
Recommended fuse: 2 A
LED elements: 4× high-power LEDs, light pattern: wide beam
Type testing & EMC
ECE R10 (EMC) tested
CISPR 25: Class 3 (12 V) / Class 2 (24 V)
Protection & Environment
Protection class/type: IPX7 (waterproof)
Operating temperature: −30 °C to +65 °C
Vibration and weather resistant
Mechanics & Connection
Connection cable length: approx. 21 cm (red = +VDC, black = GND, 20 AWG each)
Weight: 108 g
Light disc: clear; LED color: white
Bezel (replaceable): black, white, red (RAL 3001), yellow (RAL 1016), chrome
Installation note: Pre-drill holes for 2× self-tapping screws Ø 4×16 mm and feed-through Ø 14 mm; deburr edges. Clip on the bezel after fastening.
Scope of delivery:
• SL157 LED ambient light (white light, clear lens)
• Replaceable cover in selected color
• Foam pad (gasket)
• 2× self-tapping screws for fastening
• Installation instructions
