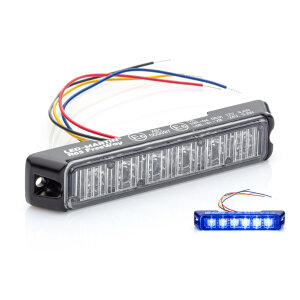

The R65 FreeWay series from LED-MARTIN impresses with maximum light output combined with approval under the latest ECE-R65 testing guidelines. Whether for the police, THW, fire department, or emergency services, the powerful 18W front flashers leave nothing to be desired in terms of quality and light output, even during daytime use, and feature a reliable LED warning system
leave nothing to be desired in terms of quality and light output, even during the day, making them a reliable LED warning system.
Product features and technical details:
Product features and technical details:
Number of LEDs: 6 at 3W
Number of LEDs: 6 x 3W
Power per light color: 18W
Light pattern: 30 (total)
Operating voltage: 12V/24V
Power consumption: 0.9A at 12V - 0.45A at 24V
Protection class: IP68
Operating temperature: -30°C - 50°C
Type approval: ECE-R65, ECE-R10
Connection instructions:
The R65 FreeWay is delivered in
one R65-approved basic flash mode. For synchronization,
simply connect the yellow cables from up to front flashers
together. To
change the flash pattern, connect the blue cable in
With the red cable. The flash mode is saved when the system is turned off. For a detailed description, please refer to the German operating instructions.
Optionally available:
R65 FreeWay with 2 front flashes
Optionally available:
1x universal holder
1x clamp holder
2x paint protection for universal holder
1x operating instructions (German)
Scope of delivery:
1x R65 FreeWay with clear lens - light color blue
1x mounting base - paint protection
1x Mounting screw kit
1x operating instructions (German)
