Versatile combination of outline and warning light

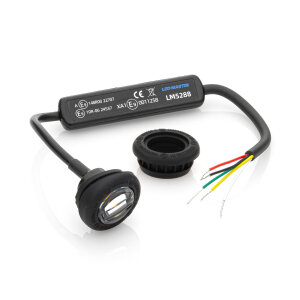

The L8 outline and warning light can be used simultaneously as a position light, outline light, or side marker light in combination with a very aggressive warning light
Ideal for securing and making vehicle contours visible with additional warning effect
Compact design with easy installation
Round light for mounting in a 19 mm hole
Easy to attach by inserting into the prepared hole
A rubber sleeve is included in the scope of delivery for straight installation or for installation on pipes
Intelligent functions for greater safety
Synchronization of multiple warning lights possible
Alternating mode for alternating flashing of multiple units can be activated
Flexible use in various vehicle types and applications
Product safety information
Manufacturer information:
LED-MARTIN GmbH
Bahnhofstraße 13
Rheinland-Pfalz
Arzfeld, Deutschland, 54687
service@led-martin.de
https://www.led-martin.de/
Connection instructions L8 Position and side marker light with integrated warning light
General product description
Combination of clearance light and warning light
Four modules form an ECE-R65-approved warning light unit
Synchronizable warning lights
Alternating flash mode possible
Technical
Operating voltage: DC 10–30 V
Power consumption:
- Warning light: 1 × 5W
- Outline light: 2 × 0.2W
Protection class: IP67
Temperature range: -30°C to +60°C
Approvals: ECE-R65 (with 4 modules), ECE-R10, ECE-R148
LED technology
Installation instructions
1. Drill a mounting hole with a diameter of 19 mm
2. Insert the mounting ring into the drill hole
3. Insert the light into the mounting ring
Electrical connection
Connection diagram according to the following positions:
1 Black – ground
2 Red – warning light + (switch positive)
3 Green – contour light + (parking light)
4 Yellow – synchronization signal
5 White – Alternating mode (optional)
Flashing pattern (warning light)
Single 120 fpm
Double 120 fpm
Quad 120 fpm
Single/Double 120 fpm
Single/Quad 120 fpm
Single SAE
Double SAE
Quad SAE
Single/Double SAE
Single/Warp
Warp 60 fpm
Continuous light 50%
Continuous light 10%
Notes
For ECE-R65 approval, four modules must be operated simultaneously
The modules are synchronized via a sync line
Alternating mode can be switched via a separate control cable
Before installation, ensure that all electrical connections are correctly insulated
