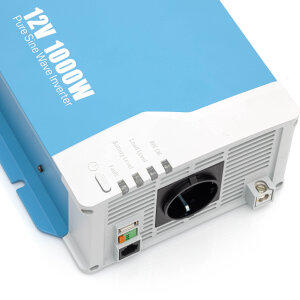

IH1000L/M - Pure sine wave inverter – 1000W – 12V to 230V
The IH1000L/M is a versatile and robust inverter for mobile use in motorhomes, boats, emergency vehicles, and off-grid applications. With its pure sine wave, it ensures safe and reliable operation even for sensitive electronics such as laptops, measuring devices, or medical equipment
It delivers up to 1,000 W of continuous power with short-term peaks of up to 1,150 W and offers quiet operation even under continuous load thanks to its thermally controlled ventilation. The integrated USB charging socket also allows smartphones or tablets to be charged directly. Complete protective functions and a high-quality design make the IH1000L/M an ideal power converter for demanding users
Technical details
Power consumption
≤ 1.0 A (no-load current)
Power supply
Input voltage: 10.5 – 16.0 V DC
Undervoltage protection: 10.5 ± 0.3 V DC
Overvoltage protection: 16.5 ± 0.5 V DC
Output
Continuous power: 1,000 W
Peak power (1 min): 1,150 W ± 5%
Output voltage: 230 V AC ± 5%
Frequency: 50 / 60 Hz ± 0.5 Hz
Waveform: Pure sine wave
Total harmonic distortion: < 3% @ rated load
Type tests
EN62477-1, EN61000-6-1, EN61000-6-3, ECE-R10
Protective device
Short circuit, overload, under/over voltage, overtemperature, reverse polarity (internal fuse)
Weight
2.4 kg
Scope of delivery
- IH1000L/M inverter
- Connection cable with ring terminals
- Operating instructions
- Plastic caps for DC connections (red and black)
- Optional: RIH remote control (black/white)
