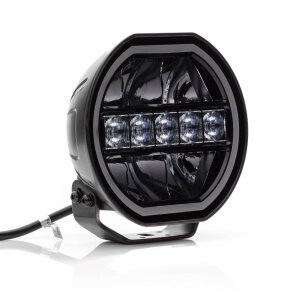

This new generation of high-beam headlamps sets new standards with its striking aesthetics, black elegance, and high performance characteristics.
The white position light ring adds striking accents to the powerful long-range headlight function.
The DL generation of LED-MARTIN high-beam headlights has been type-approved in accordance with the revised ECE-R149 regulation and can therefore be used without hesitation as high-beam headlights.
These stylish high-beam headlights are particularly recommended for use on trucks and large off-road vehicles.
Product features and technical details:
Power supply: 10/30V
Type approval: ECE-R148, ECE-R149, ECE-R10
Protection class: IP67 / IP69K
Reflectors: Combination of flood and spot reflectors
Cable length: 55 cm including German DT 4-pin pin housing
Connection cable (included): 44 cm, including Deutsch DT 4-pin socket housing
Diameter: 7 inches // 176 mm, depth: 70.5 mm
Current consumption: 12V=1.5A / 24V=0.75A
High beam power: 17.8W
Position light power: 0.95W
Recommended fuse rating: 15A
Reference number: 20 Effective light output: 1356 lm
Connection:
Red: +VDC
Black: -Ground
White: white position light
Scope of delivery:
1x DL7 remote headlight
1x mounting kit
1x wiring harness
1x M10 screw with self-locking nut for mounting
