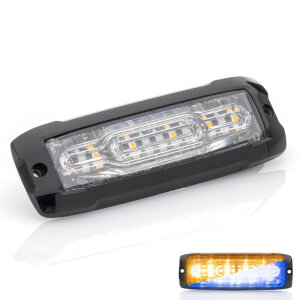

Extremely flat XT12 front flashlight in blue/yellow for professional use: With an installation height of only 10 mm, the XT12 module fits inconspicuously into front aprons, radiator grilles, or body edges and still provides a high warning effect. 12 high-performance LEDs in clear cover glass and the new Xtreme optics create a very wide beam pattern—ideal for emergency, municipal, and service vehicles. The robust, vibration-resistant housing is made of high-quality aluminum alloy and is resistant to impacts and vibrations.
amber behind clear cover glass and the new Xtreme optics create a
very wide beam angle – ideal for emergency,
municipal, and service vehicles. The robust, vibration-resistant
housing with aluminum base is completely weatherproof
(IPX8) and designed for indoor and outdoor use.
Thanks to ECE R65 (XBA1) and ECE R10, the XT12 is Thanks to ECE R65 (XBA1) and ECE R10, the XT12 is ideally equipped for
demanding applications. Multiple modules
can be operated synchronously or alternately, and the memory function
automatically recalls the last selected
flashing pattern when switched on. Optional interchangeable frames in white
or chrome are available as accessories.
Product features & technical details:
Operating voltage: 12–24 V DC
Power consumption: max. 19.2 W
Current consumption: max. 1.6 A @ 12 V DC / 0.8 A
@ 24 V DC
Number of LEDs: 12 high-performance LEDs
Light color: Blue / Yellow
Recommended fuse: 2 A
Lens design: Clear lens
Flash patterns: 18 selectable flash patterns
Dimensions (L x H x D): approx.
133 x 45 x 10 mm
Housing: Aluminum base for efficient heat dissipation
Interchangeable frame: Black (plastic, PC)
Protection class: IPX8, completely weatherproof
Design: Vibration and shock resistant, for indoor and outdoor installation
Connection and functions:
Cable length: approx. 265 mm
Wire cross-section: 0.5 mm² (AWG 20)
Synchronization: Multiple modules can be switched synchronously or alternately
Memory function: Stores the last active flash pattern
Reverse polarity protection: Integrated protection against reverse polarity
Scope of delivery:
1x XT12 extremely thin flash module, horizontal, BLUE / YELLOW
1x interchangeable frame in black
1x screw set
