With the TC series, LED-MARTIN offers an economical
worklight solution in outstanding
original equipment quality.
Innovative curved lenses produce a wide, homogeneous light pattern
for optimum illumination in the working area.
The TC series is available in four power variants with open connection cables
or German plugs, depending on the design required, with
round or square aluminum housings:

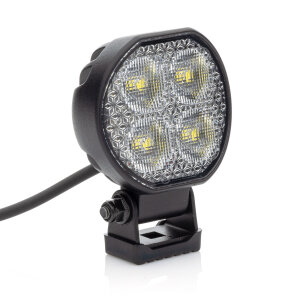

LM5146 - TCR2200 work light - round - 1500 mm cable - max. 23W
LM5150 - TCR2200 work light - round - German plug - max. 23W
LM5148 - TCR3600 work light - round - 1500 mm cable - max. 39 W
LM5152 - TCR3600 work light - round - German plug - max. 39W
LM5147 - TCE2100 work light - square - 1500 mm cable - max. 22W
LM5151 - TCE2100 work light - square - German plug - max. 22W
LM5149 - TCE4200 work light - square - 1500 mm cable - max. 48 W
LM5153 - TCE4200 work light - square - German plug - max. 48W
Product features and technical details - TCR2200
Work light:
Power supply: 10-30V
Type approval: ECE-R10
Power in watts: max. 23W
Lumen: 2200lm
Color temperature: 5700K
Protection class: IP67
Number of LEDs: 12 LEDs
Power consumption: 12V=1.18A / 24V= 0.52A
Dimensions with bracket - WxHxD: 74.6 x 84.7 x 37.1 mm
Cable length with open cable: 1500 mm
Cable length with DT plug: 455 mm
Scope of delivery:
1x TCR2200 work light in selected version
1x bracket set
1x bracket set
