With the PROFLASH-TA20 Type R65PF-A-TA20, LED-MARTIN® is launching the first warning light on the market that has been tested in accordance with Technical Requirements 20 of the German Road Traffic Licensing Regulations (StVZO).
As a time-saving PLUG & PLAY solution, we are taking our "warning system for EVERYONE" to a new level of development in three quick installation steps:
- Mount the Proflash warning system at the rear, either directly on the rear window with suitable adhesive holders for vertical windows or using angled brackets on the frame.
- connect the supplied cable system to the Proflash TA20 and route the cable professionally through the interior
- plug the 12/24V vehicle connector into the designated socket and activate the switch if necessary
technical details and product features:
Power supply: 12/24V via car plug
Flash pattern: single/double flash
Type approval: TA20
Dimensions WxHxD: 103 x 30 x 17 mm

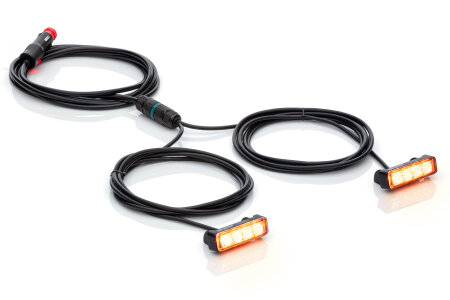

Connection cable length: 3m connection cable from the module to the Y-distributor, another 3m to the 12/24V vehicle connector
This flash module is generally:
- usable in all vehicles (e.g., company vehicles, private vehicles)
- no registration required according to §53a (3) StVZO (German Road Traffic Licensing Regulations) Can be used in the interior (effective outside)
- usable inside the vehicle
Excerpt from the general type approval:
A warning light that only becomes visible when a flap, door, or roller door is opened or when an installation frame or similar device is pulled out is also considered to be a warning light permanently installed in the vehicle.
Product tested by:
TÜV Rheinland Kraftfahrt GmbH, Berlin
General type approval issued by:
Federal Motor Transport Authority (KBA), Flensburg
Scope of delivery:
You will receive the plug & play solution pre-assembled from us!
