LED MARTIN presents X-RANGE and X-RANGE Duo
long-range headlights with ECE-R112 approval, powerful LEDs, and X-reflectors.
Conventional light bars usually emit light in a wide angle, lack ECE-R112 type approval, and are therefore not suitable as long-range headlights.
Conventional light bars usually emit light in a wide angle, do not have type approval according to ECE-R112 and are therefore not approved as long-range headlights.
The X-Reflectors of the X-Range series compensate for this and the headlight provides an optimal light pattern that is type-approved according to ECE-R112.
The X-Reflectors of the X-Range series compensate for this and the headlight provides an optimal light pattern that is type-approved according to ECE-R112.
The X reflectors of the X-Range series compensate for this and the headlight offers an optimal light pattern that is type-approved according to ECE-R112.
Forestry vehicles, construction site vehicles, pickups, and agricultural fleets benefit in particular from the low installation height and powerful LEDs with X-reflectors.
The X-RANGE series includes a wide selection of different designs—in various lengths and power classes, depending on requirements.
The X-RANGE series includes a wide selection of different versions - in various lengths and performance classes, depending on requirements:
S40F X-RANGE long-range headlight
Long-range headlights M40F X-RANGE
Long-range spotlight L40F X-RANGE
S70F X-RANGE Duo long-range spotlight
M70F X-RANGE Duo long-range headlight
Long-range headlight L70F X-RANGE Duo
technical
details and product features:
Power supply: 10/30V
Type approval: ECE-R112, ECE-R10
Protection class: IP67 / IP69K
Reflectors: Combination of flood and spot reflectors
Cable length: 46 cm / German plug socket

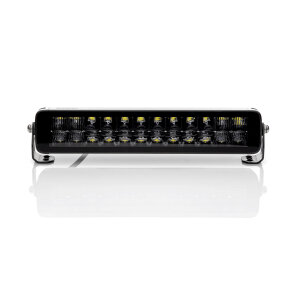

M70F high-beam headlight
X-RANGE Duo - ECE-R112
Length: 357 mm / Height: 70 mm / Depth: 67 mm
Power consumption: 12V=3.4A / 24V=1.88A
Power: max. 46W
Reference number: 45
Candela: 24500cd
Lumen: 10080lm
Scope of delivery:
1x X-RANGE long-range spotlight in selected version
2x brackets including screw set
1x 33.5 cm cable extension with German plug
