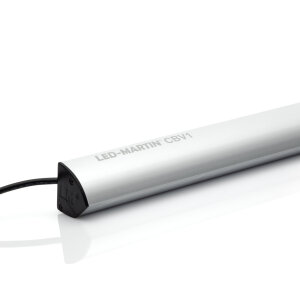

The CBV1 ambient lighting was developed and tested at LED-MARTIN GmbH in collaboration with professional vehicle manufacturers. (CBV = Car Builder Version).
Illumination: During the design of the illumination, particular attention was paid to glare-free radiation. The light color of 4000-4500K enables fatigue-free working in conditions similar to daylight.
Installation:
The CBV1 ambient lighting is very easy and versatile to install. For stationary or indoor applications, the light can be attached using the spring clips supplied.
For dynamic applications, the light can be mounted on the rear using T-slot nuts with M6 or M8 screws.
The most efficient installation method in terms of work preparation is bonding using 3M VHB®. When installing multiple lights per vehicle, this is the most durable and fastest method.
With the intended adhesive width of twice 6 mm over a length of 1000 mm, the light has a holding force of >50 kg. Please feel free to contact us for more information.
Electrics:
With a 2000 mm input cable and a 300 mm output cable, the light can be daisy-chained up to 3 meters at 12V. At 24V, up to 6 meters. Thanks to the built-in cable channel, this can also be done inside the light.
Protection class:
The full silicone encapsulation enables a very high protection class even under the most adverse conditions.
Technical data:
Power: 15W max.
Voltage: 10-30VDC
Light output: 1200lm (measured in the laboratory)
RED connection: +VDC
BLACK connection: -Ground
Length: 1024mm
Weight: 1.1kg (very solid)
Scope of delivery:
1x CBV1 ambient lighting 1000mm
3x stainless steel retaining clips
Optional
- 3M VHB tape
- T-slot nuts
