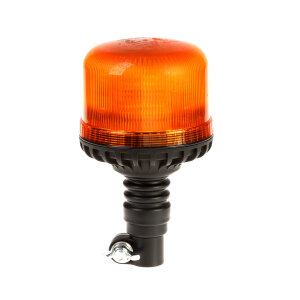

The C360 series, with its focus on functionality and effective warning performance, is an economical solution for companies with high requirements.
In particular, ECE-R65 Class 2 certification is future-oriented and supports your long-term fleet modernization measures with LED technology.
Adjustable toggle switches under the light cover allow the brightness level and flash pattern to be quickly changed depending on the situation.
With the exception of the 3-point version, it is equipped with two additional cables in addition to +VDC and ground (-). The light output is increased to daytime level by connecting the white cable.
The C360 3-point version also allows additional C360 rotating beacons to be synchronized.
Depending on requirements, the C360 rotating beacon is available as a 24 mm DIN mount, 3-point or mobile magnetic version.
technical details and product features:
- Power supply: 12/24V
- Type approval: ECE-R65 Class 2, ECE-R10
- Flash pattern: rotating and double flash, individually certified according to ECE-R65 TA2
- Power: 16x 5W LEDs
- Protection class: IP66
Cable assignment: only for 3-point version
Red: +12V/24VDC
Black: Ground (-)
Yellow: Flash pattern selection (ground-tied), synchronization with at least 2x C360 3-point rotating beacons (yellow + yellow)
White: Increase brightness to daytime level
Scope of delivery:
1x C360 rotating beacon with selected mounting solution
1x operating instructions in German
Product safety information
