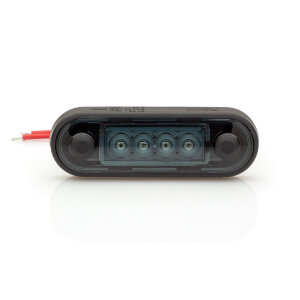

Proven quality in a new tinted design – BULLSEYE DARK series
Fully encapsulated, long-life LED technology combined with high-quality, weather-resistant mounting components allows flexible mounting options on
-straight and curved surfaces,
-Pipes or bull bars/bumpers,
-Lamp brackets.
Depending on the light color selected, these are approved for front, side, or rear mounting in accordance with the applicable ECE type approvals.
The screws required for mounting can be discreetly concealed using the cover caps supplied.
Product features and technical details:
Type approval depending on the selected light color; ECE-R91 - side marker light (yellow), ECE-R7 - clearance light (red and white)
Number of LEDs: 4 LEDs in selected light color yellow, white, or red
Power supply: 12-36V DC
Operating temperature: -40 degrees C. - +55 degrees C.
Power consumption and output: 12/24V = 0.05A/0.05A = 0.6W/1.2W
Water, dust, and airtight housing
Scope of delivery:
1x BULLSEYE side marker or outline light in selected light color
2x rubberized mounting frames for straight or rounded surfaces
2x cover caps to conceal the drill holes
