A compact, powerful LED wide-beam spotlight for indoor and outdoor use on emergency, utility, and special-purpose vehicles. Ideal as a perimeter or work light for safely illuminating footwells, vehicle sides, or rear work areas. When installing, ensure correct polarity (red = +VDC, black = ground), a fused supply cable (2 A), and a flat, deburred mounting surface. The light is attached with a foam pad and two self-tapping screws. The cover is interchangeable and available in several colors.
Technical details
Electrical data
Power consumption: up to 14.4 W
Luminous flux: 1,400 lm (raw) / 890 lm (effective)
Power supply: 12–24 V DC (multivoltage)
Max. current consumption: 1.2 A @ 12 V / 0.6 A @ 24 V
Recommended fuse: 2 A
LED elements: 4× high-power LEDs, light pattern: wide beam
Type testing & EMC
ECE R10 (EMC) tested
CISPR 25: Class 3 (12 V) / Class 2 (24 V)
Protection & Environment
Protection class/type: IPX7 (waterproof)
Operating temperature: −30 °C to +65 °C
Vibration and weather resistant
Mechanics & Connection
Connection cable length: approx. 21 cm (red = +VDC, black = GND, 20 AWG each)
Weight: 108 g
Light disc: clear; LED color: white
Bezel (replaceable): black, white, red (RAL 3001), yellow (RAL 1016), chrome
Installation note: Pre-drill holes for 2× self-tapping screws Ø 4×16 mm and feed-through Ø 14 mm; deburr edges. Clip on the bezel after fastening.
Scope of delivery:

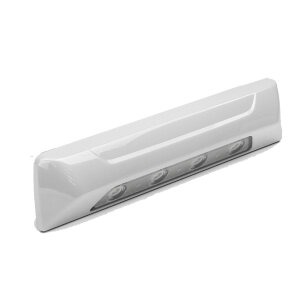

• SL157 LED ambient light (white light, clear lens)
• Replaceable cover in selected color
• Foam pad (gasket)
• 2× self-tapping screws for fastening
• Installation instructions
Product safety information
Manufacturer information:
LED-MARTIN GmbH
Halenbacher Straße 8
Rheinland-Pfalz
Arzfeld, Deutschland, 54687
service@led-martin.de
https://www.led-martin.de/
Installation instructions
1. Select a suitable mounting position that ensures sufficient illumination and is not obscured by vehicle components.
2. Drill two mounting holes (Ã 4 mm) and a central feed-through (Ã 14 mm) for the connection cable.
3. Remove sharp edges and burrs so as not to damage the cable insulation.
4. Feed the connection cable through the hole and secure the light with the self-tapping screws provided.
5. Insert the foam seal between the light and the bodywork to prevent moisture from entering.
6. After installation, clip the colored cover onto the light housing.
Electrical connection
⢠Red cable = +VDC (12â24 V DC)
⢠Black cable = ground (GND)
Recommended fuse rating: 2 A slow-blow fuse
Note: Ensure that the connection is clean and free of corrosion. Reverse polarity can damage the electronics.
