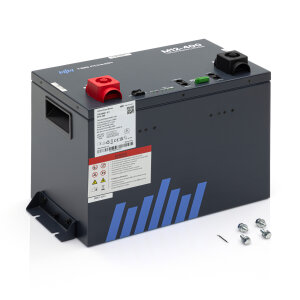

The M12-400 lithium iron phosphate (LiFePO4) battery is the ideal power source when particularly high capacity and power reserves are required, for example in larger motorhomes, caravans, or boats. With its integrated battery management system (BMS) and the ability to power even large consumers such as air conditioning systems or coffee machines, it is perfect for demanding applications. When installing, please ensure that you only use approved chargers and compliant cabling so as not to jeopardize your vehicle's operating license. This battery is approved for use in vehicles thanks to its UN ECE R10.06 certification. We will be happy to assist you with any further questions regarding installation or suitable system components.
-
Long service life and high cycle count: Thanks to their robust design, LiFePO4 batteries have a very long service life and achieve a high number of charge cycles even when discharged to 100% (DoD).
-
Maintenance-free and low self-discharge: These batteries require no additional maintenance and have minimal self-discharge.
-
High discharge currents: They support discharge currents of up to a maximum of 1C, which enables high power output.
-
Full capacity utilization: The entire available capacity can be used without affecting the service life.
-
Integrated BMS: A built-in battery management system automatically monitors the state of charge, balances the cells, and protects against overcharging, deep discharge, and overtemperature.
-
Single cell monitoring: Each cell is monitored separately to increase operational reliability and ensure optimum performance.
-
Parallel connection: Up to eight batteries can be connected in parallel to flexibly expand the total capacity.
-
Built-in precision shunt (±0.1A): Enables accurate measurement of the state of charge (SoC).
-
Communication interfaces: The battery supports RS485 and CAN bus connections for easy integration into energy management systems.
-
Remote switch support: The battery can be conveniently switched on and off via a remote battery switch.
-
Flexible capacity options: Available in 105 Ah, 200 Ah, and 400 Ah, suitable for different requirements.
-
Built-in heating element: Can also be operated in winter at cold temperatures. The battery heats itself to enable charging.
Technical details
Power supply
12.8 V (nominal voltage LiFePO4)
Type tests
UN38.3, RoHS, CE, UN ECE R10.06
Protection class
IP20
Weight
approx. 42.5 kg
Scope
1x M12-400 lithium iron phosphate battery (LiFePO4)
(Additional installation and connection components are not included in the scope of delivery)
