The Nexto DARK rotating beacon features a modern design and high functionality. It is available in three different mounting options: fixed mounting (LM5158), magnetic base (LM5157), and DIN mounting (LM5159). This versatility allows for flexible use in a wide range of applications.
Technical data:
-
Power: 36W
-
Voltage: 12V / 24V
-
Recommended fuse rating: 5A

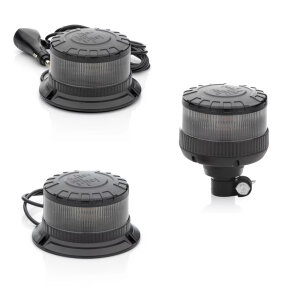

Mounting options:
-
Fixed mounting (LM5158): The light is mounted with M5 screws on a hole diameter of 120 mm.
-
Magnetic base (LM5157): The light is attached to steel roofs using a magnetic suction cup combination. An ON/OFF switch and a button on the cigarette lighter plug allow the flash pattern to be controlled and selected.
-
DIN mounting (LM5159): The light is attached to an existing bracket and secured with a wing nut. The flash pattern can be changed using a rubberized selector switch on the underside of the light.
Flash pattern control:
- Multiple lights can be connected to each other via synchronization. The flash pattern is selected by touching ground or via the button on the cigarette lighter plug for the magnetic base version.
The Nexto DARK rotating beacon is ideal for professional use and meets all relevant requirements for use in safety-related environments.
